EBS-I300 Asus, Fanless Embedded Computer with Intel® Celeron® Quad Core J6412 SoC
- Dual Shock-Resistant Hard Drive Bracket: Bending HDD Bracket equipped with 8 shock-proof hard disk rubber, reducing the impact of violent shaking

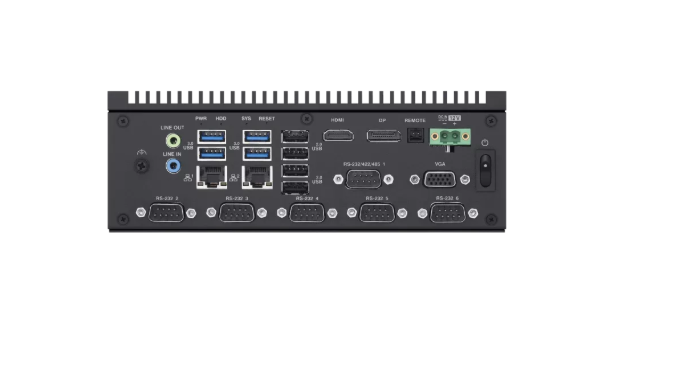

- Single-Sided IO: All input and output interfaces are concentrated on a single panel, making installation and management convenient
- Fanless Design: Dense cooling fins provide better thermal solution
- Anti-Scratch Heat Sink: Rounded edges on all four sides, ensuring user safety
| CPU | Intel® Celeron® Quad-Core J6412 SoC onboard Processors (Elkhart Lake) |
| CPU TDP | 10W |
| Core | 4 |
| Base Frequency | 2.0GHz |
| Technology | DDR4 3200 |
| Max. | 32 GB Max |
| Socket | 2 x So-DIMM |
| PCIe 3.0/2.0 | 1 (PCIe x4 slot, x2 speed) |
| M.2 | 1 x E key, type 2230 for WIFI/BT device (PCIE x1/USB2.0) 1 x M key, type 2242/2280/2260 (PCIE x2) supports NVMe |
| Speed | 10/100/1000 Mbps |
| Controller | 2 x Realtek RTL8111H (Support WOL/PXE) |
| Connector | 2 x RJ-45 |
| 2.5‘’SATA | Supports 2 x 2.5" SSD |
| Display | HDMI,VGA,DP++ |
| USB | 4*USB 3.1 Gen 1,4*USB 2.0 |
| Serial Port2 | 1 (COM1 supports RS232/422/485: Ring/5V/12V Select, switch by jumper) |
| 5 RS-232 | |
| Ethernet | 2 |
| Audio jack | 2 (Line in, Line out) |
| Power button | 1 |
| SSD active LED Power LED |
1 1 |
| System LED | 1 |
| Reset Switch | 1 |
| Remote button | 1 |
| DC jack | 1,Phoenix 2 pin |
| Operating Temperature | 0°C~40°C（ Base on SSD） |
| Non-Operating Temperature | -15 ~ 60° C |
| Relative Humidity | Operational humidity: 40°C@10%~95% |
| Dimension(WxHxD) | 200 x 70 x 188 mm |
| Weight | 2.05KG |
| Mounting | Wall mount |

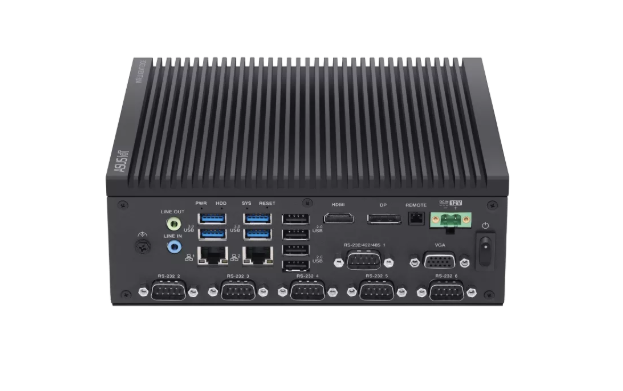

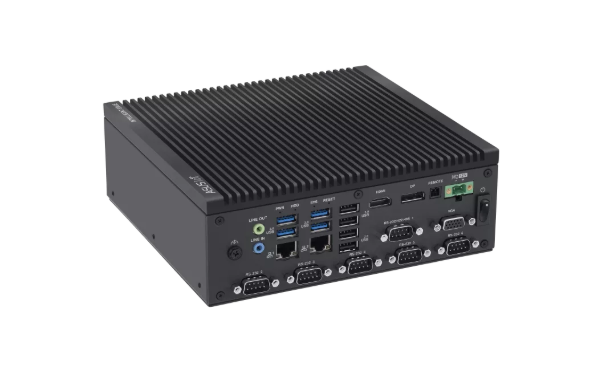

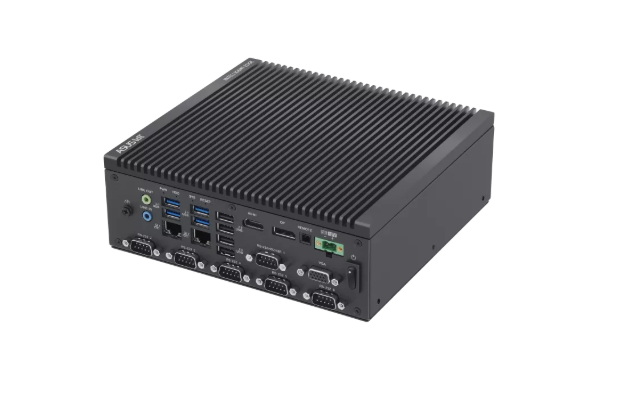

Fanless Embedded Computer featuring the powerful Intel® Celeron® Quad Core J6412 SoC, designed for superior performance and reliability in demanding environments. This advanced system offers excellent expandability with essential I/O ports conveniently located on the front side bezel, making connectivity effortless. Equipped with 2 x So-DIMM slots for expandable memory, dual-LAN for robust network connectivity, and multiple COM ports for versatile communication options, this embedded computer is built to handle a wide range of industrial applications. Additionally, it supports 2 x 2.5″ SSD, providing ample storage space for your critical data. Ideal for use in harsh environments, this fanless solution ensures silent, maintenance-free operation, making it the perfect choice for your industrial automation, IoT.
