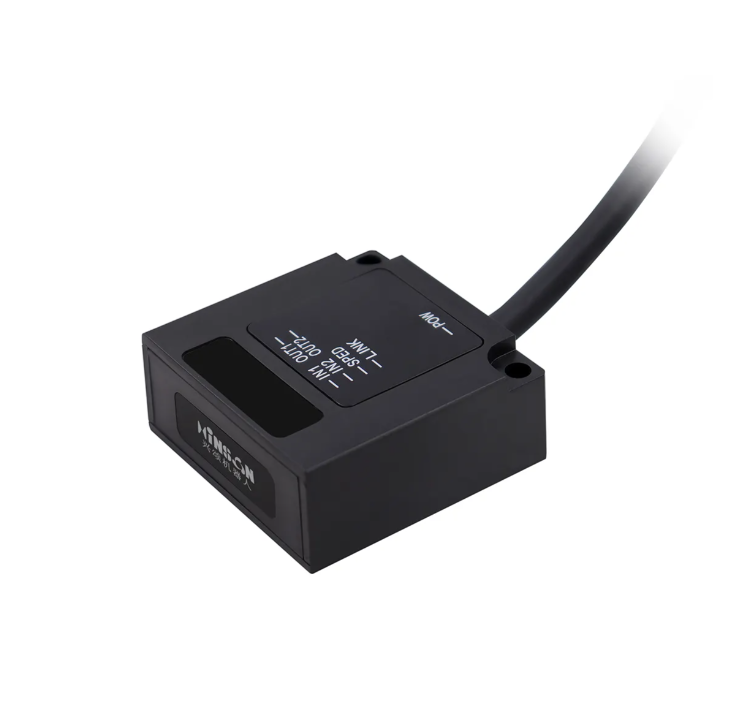

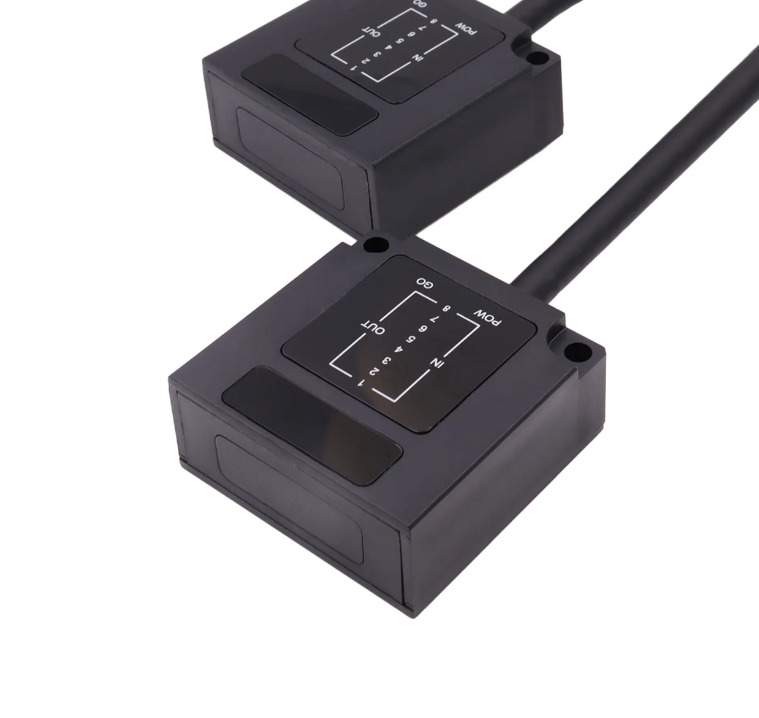

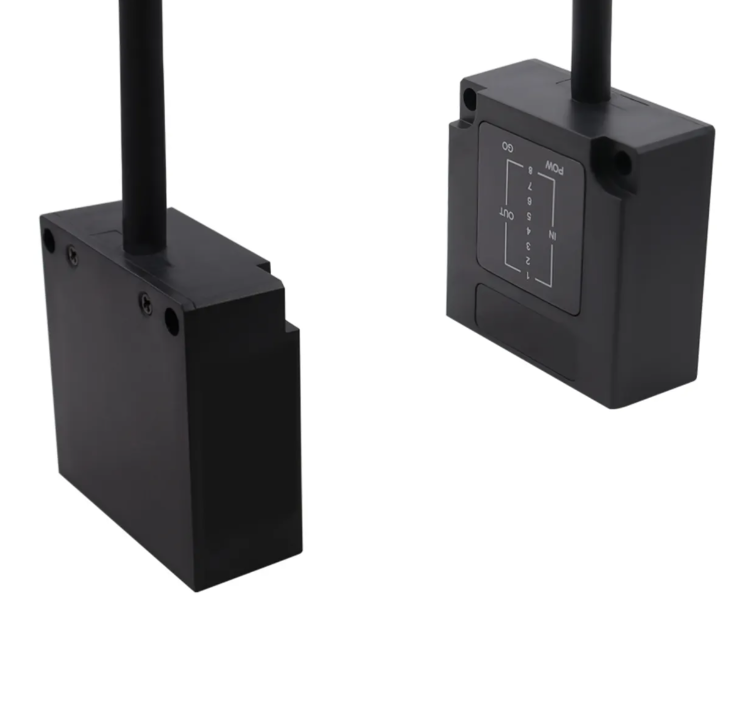

OPCA-N8I-A84 Optical Sensor 1 Meter Infrared Ray for AGV Optimal communication
Specifications
Mounting Type: Optical Communication sensor
Description: Optical Communication sensor
Model Number: OPCA-N8I-A84
Type: optical data transmission device
Series: OPCA
Place of Origin: Guangdong, China
Brand Name: Hinson
Theory: optical Communication
Output: 8*NPN
Description: optical data transmission device
Voltage - Supply: DC10-30V
Wavelength: 940nm
Selling Units: Single item
Single package size: 12X12X4 cm
Single gross weight: 0.200 kg
|
Model Number
|
OPCA-N8I-A84
|
||
|
ProductType
|
Optical Communication Sensor
|
||
|
Place of Origin
|
China
|
||
|
Provice
|
Guangdong
|
||
|
Brand Name
|
Hinson
|
||
|
Product parameters
|
|||
|
Transmit window
|
Side-on
|
||
|
Transmit angle
|
±15°
|
||
|
Electrical specifications
|
Voltage
|
DC 10-30V
|
|
|
Current
|
< 50mA
|
||
|
Communication carrier
|
Near infrared ray
|
||
|
Debug mode
|
Pulse modulation
|
||
|
Communication mode
|
full duplex
|
||
|
Communication time-delay
|
10ms
|
||
|
Optical communication build time
|
25ms
|
||
|
Working distance
|
Maximum 4m
|
||
|
Port
|
RS232
|
×
|
|
|
RS485
|
×
|
||
|
Input
|
8（NPN level）
|
||
|
Output
|
8（NPN level）
|
||
|
Prompt
|
Indicator light
|
18 LED indicator light
|
|
|
Cable
|
AWG28*22*2m
|
||
|
Environment
|
Ambient light
|
4000lux
|
|
|
Temperature
|
-10-50℃
|
||
|
Humidity
|
80% non-condensation
|
||
|
Material
|
ABS
|
||
|

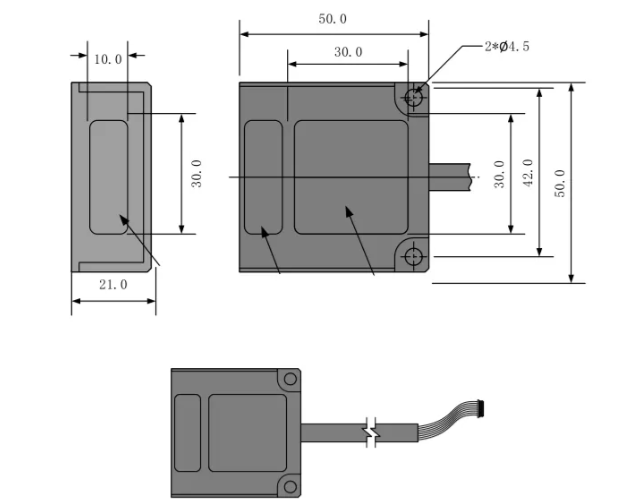

Dimensions
|
50*21*50mm
|
||
|
Weight
|
156±3g
|
||
