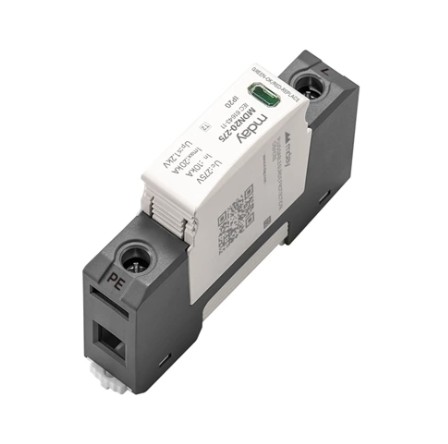

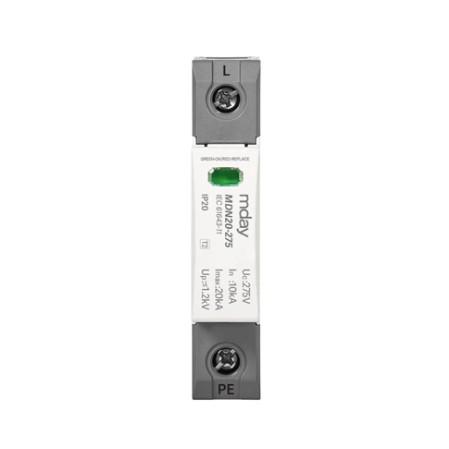

Type 2+3 Classe B+c Surge Protector, IMDB26 series, by Mday Solar
Specifications
- · TYPE: T2+T3
· In/Imax: 10kA/20kA
· Conform To: IEC/EN 61643-11,GB/T 18802.11
· Certification: UKCA/CE/CB/TUV/ROHS/REACH/CQC
· Delivery Time: 1-100PCS within 7 days/100-1000PCS within 10 days
· Payment Terms: L/C, T/T, Western U nion, Paypal
· Supply Ability: 100000 pcs per month
-

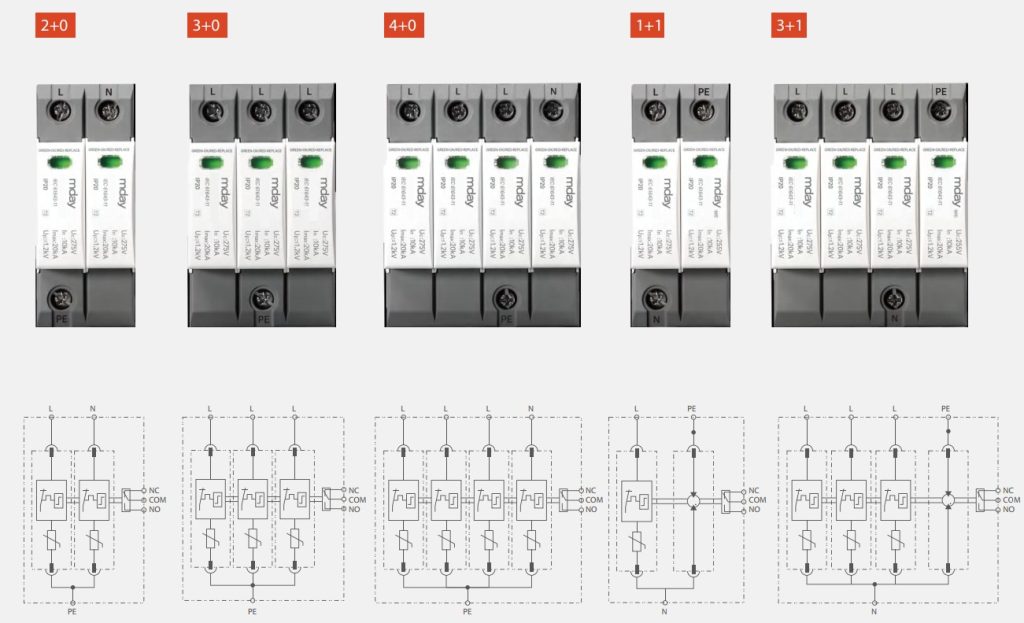

Mday Type IMDB26-275 IMDB26-320 IMDB26-385 IMDB26-440 Product Description Type2+3 Surge Ptotective Device AC Operating Voltage Un 230Vac 230Vac 230Vac 230Vac Maximum Continuous Operating Voltage Uc 275Vac 320Vac 385Vac 440Vac Temporary Overvoltage Test Value TOV-5s[Tolerance] Ut 335Vac 335Vac 580Vac 580Vac Temporary Overvoltage Test Value TOV-120min[Disconnection] Ut 440Vac 440Vac 770Vac 770Vac Nominal Discharge Current(8/20μs) In 10kA Maximum Discharge Current(8/20μs) Imax 20kA Open Circuit Voltage Uoc 6kV 6kV 6kV 6kV Voltage Protection Level Up ≤1.2kV ≤1.3kV ≤1.5kV ≤1.6kV Short-circuit current rating Isccr 25kA heat tripping device Insertion Max. Backup Fuse 32A gG Fuse Mechanical properties Product size see the photo as below Wiring method screw terminal 2.5-25mm² Normal/Fault display green/red Maximum remote signal load voltage/current 250V/0.5A[AC],30V/3A[DC] Maximum cross-sectional area of remote signal connection line 1.5mm2 Installation 35mm DIN Rail Operating Temperature range Tu -40-+85° Protection level IP20 Enclosure material Thermoplastic material, compliant with UL94-V0
Mday’s adopts fully automatic machine double-sided soldering technology
Tripping side：
1. Automatic soldering technology for both sides, stable connection,and no false soldering.
2. Adopt chromium-free tin material, more green and environmentally friendly.
3. Double-layer thickened copper design, high flow, more stable.
Chip side：
1. Accurate parameters, every data is exactly the same as the actual product.
2. Use high-efficiency encapsulation chip design to improve heat dissipation performance and extend service life.
