8-port Fast unmanaged Industrial Ethernet Switch, model NEU-IB8F
- The products are compatible with mainstream industrial automation protocols, not limited to Modbus TCP, Ethernet/IP, Profinet RT, EthernetCat, etc.
- Using high-performance chips and the latest industrial design Reliable anti-surge, anti-lightning, anti-electromagnetic interference, anti-vibration, stable and resistant to harsh working environments.
- Supports redundant DC 9-52V wide voltage and reverse connection protection.
- The wide temperature design is resistant to long-term operation at a temperature from -40℃ to 75℃
- Long service life
- Din-rail installation (in the control cabinet or directly on the automation equipment).
- Fan-less design efficient wavy aluminum housing cooling surface, IP40 protection level
| Ethernet interface | |
| RJ45 Ports | 10/100BaseT(X), Automatic detection, Full/half duplex MDI/MDI-x adaptive |
| Standards | |
| Network Protocols | IEEE802.3 10BASE-T; 100BASE-T IEEE802.3i 10Base-T; IEEE802.3u; IEEE802.3x; |
| Twisted Pair | 10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) |
| Switch Properties | |
| Processing Type: | Store and Forward |
| MAC Table Size | 2K |
| Packet Buffer Size | 1Mbit |
| Bandwidth | 1G |
| Switching Delay | ＜10μs |
| Power Consume | ＜3Watts |
| Power Parameters | |
| Power | Connection: 1 removable 5-contact terminal block(s) Input voltage: DC9 to 52V redundant dual inputs support reverse connection protection |
| LED Indicator | Power: Green Link: Green |
| Physical Characteristics | |
| Enclosure | Wavy aluminum alloy |
| Protection level | IP40 |

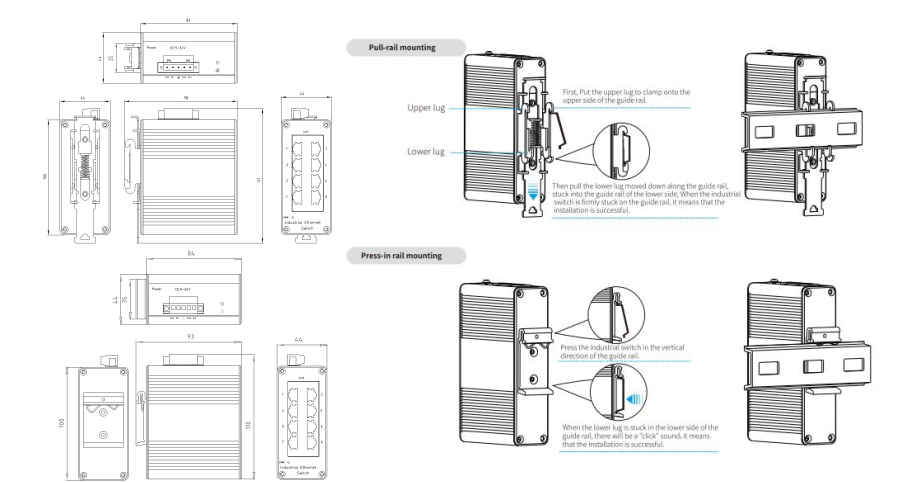

| Dimensions | 100x84x44mm （ length x width x height) |
| Weigh | 0.4kg |
| Installation | Push-in DIN rail |
| Environmental Limits | |
| Operating Temperature |
-40～75℃ （ -40～185 °F） |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Standards and Certifications | |
| Safety | EN 62368-1(LVD) |
| EMI | FCC Part 15 Subpart B Class A， EN 55022 Class A |
| EMS | IEC(EN)61000-4-2(ESD):±8kV Contact,±8kV indirect， ±15kV Air discharge IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV IEC(EN)61000-4-5(Surge): power:±4kV CM/±2kV DM; data:±6kV CM/±4kV DM IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
NEU-IB8F is a converging integrated industrial Ethernet unmanaged switch independently developed by Dongguan Phynam Comtech Co.,Limited. This product is mainly developed for the application of point-to-point networks, star networks, tree networks and chain networks in the industrial field. It supports 8-port 10/100Base-TX. This product has a high-performance switching engine, a wavy aluminum alloy shell with an IP40 protection level, a fanless design and an efficient heat dissipation surface, and over-current, over-voltage and EMC protection for the loading power input port. The RJ45 port is equipped with excellent EMC protection performance, so that the series of products can adapt to harsh and dangerous industrial environments. Therefore, it can provide reliable and convenient solutions for users’ Ethernet equipment networking.
