AH-14Z4 TRMS CURRENT TRANSMITTER
Specifications
- Input overload protection
- Output overcurrent limit protection
- Output current short-circuit protection
- Wide voltage power supply
- Working power reverse protection
- Light weight and easy installation
- High precision, good linearity
- Wide frequency band, low temperature drift
- Fast response, strong anti-interference ability
- Measurement Range :-50A~+50A

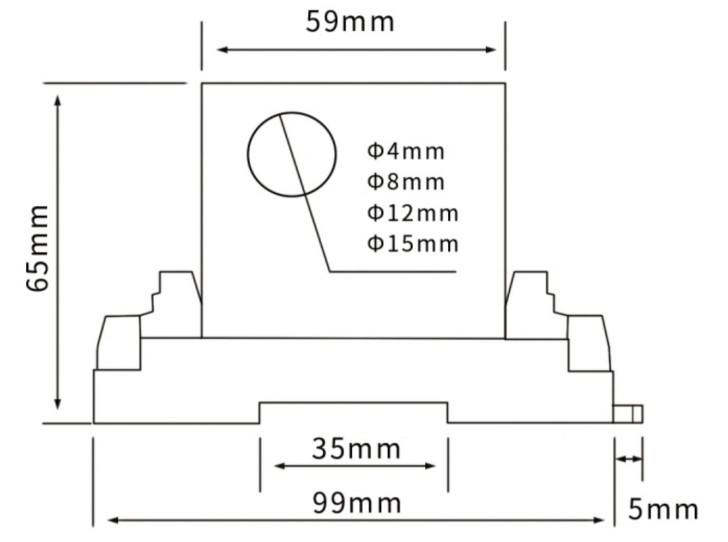

- Aperture :15mm
- Band width : 20Hz-5KHz
- Linear range : 0%~110% Nominal input (adjustable)
- Accuracy level : 0.3
- Output signal : RS485
- Response time : <200 ms
- Temperature drift : 100ppm
- Power supply : DC24V
- Power consumption : ≤1W
- Isolated voltage (between input and power supply): 1500Vrms(1 min, no spark)
- Common mode rejection ratio : 60dB(50Hz)
- Overload capacity : Punch input, 10 times nominal input, lasting 5 seconds
- Operating temperature : - 4 0 ℃ ~7 0 ℃
- Relative humidity : 25 % ~ 8 5 % RH
- Storage temperature : -2 5 ℃~85 ℃
- Installation method : 35mmDIN rail installation
The voltage and current transmitter collects the voltage and current of the field equipment and converts it into the DC voltage and current signal output: It has the characteristics of high precision, high isolation, low drift, low power consumption, small size, fast response, strong anti-interference ability and so on. This product adopts standard system. DIN35mm rail installation, terminal connection, easy installation, suitable for power supply equipment, power network monitoring automation system, industrial control monitoring system and other fields
