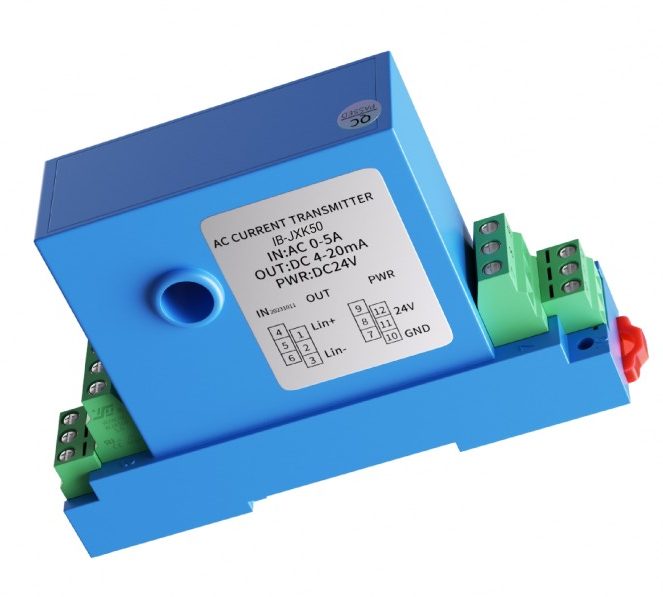

IB-JXK50 Current Transducer
Specifications
Model:
IB-JXK50
Maker/Brand:
Anhui Qidian Automation Technology Co., Ltd
Category:
Notes:
1.Inputoverload protection
2.Outputovercurrent limit protection
3.Outputcurrent short-circuit protection
4.Widevoltage power supply
5.Workingpower reverse protection
6.Lightweight and easy installation
7.Highprecision, good linearity
8.Widefrequency band, low temperature drift,
9.Fast response, strong anti-interference ability

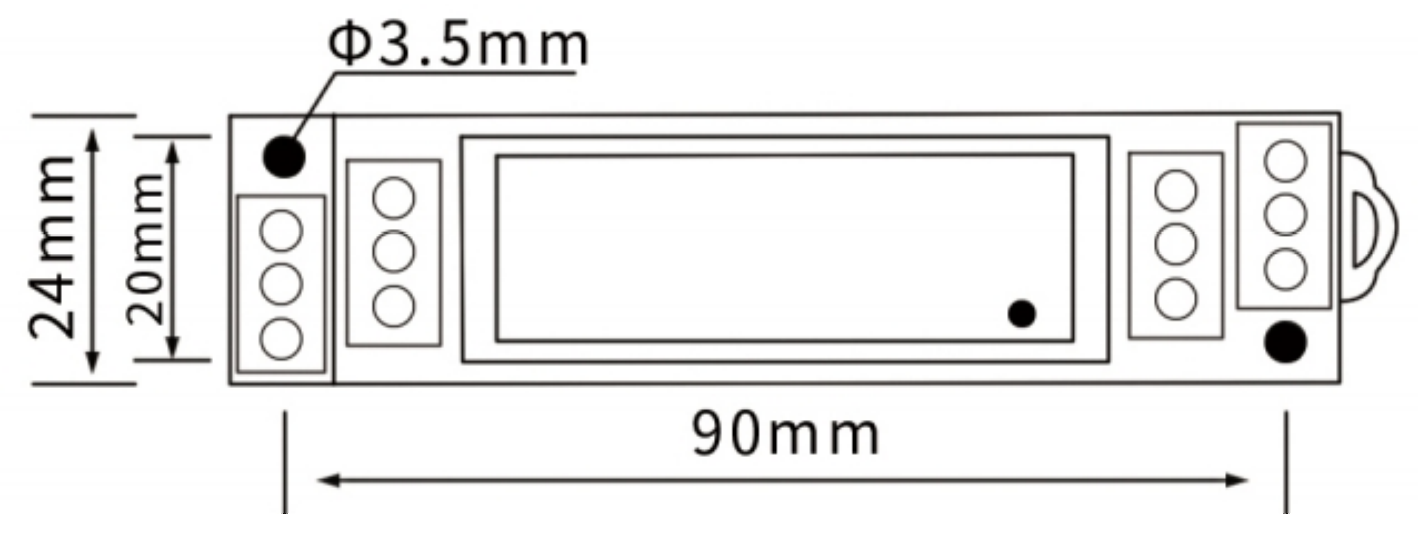

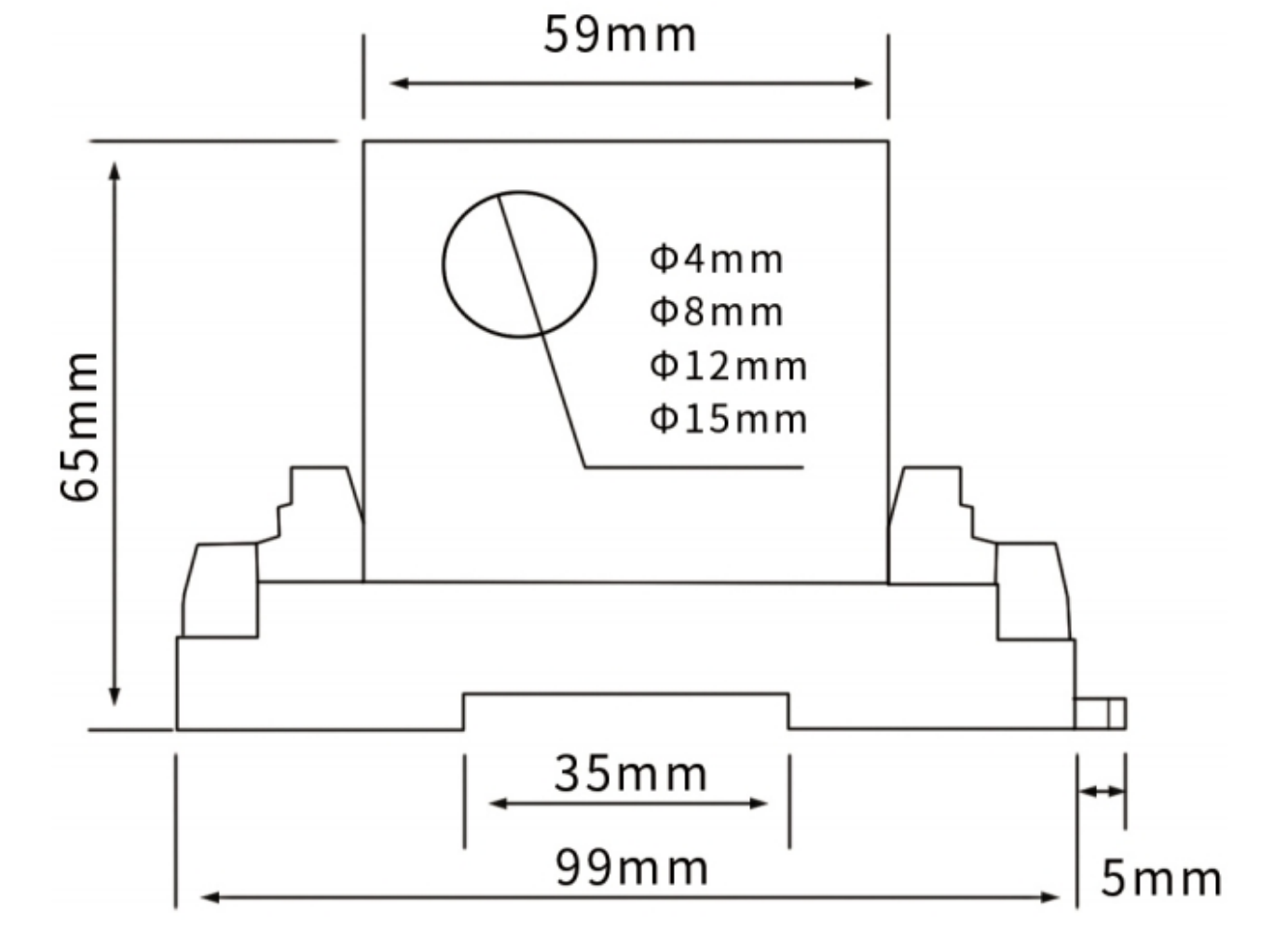

- Installation method: Standard guide rail (35mm)
- Originalmeasurement range: 0A~150A

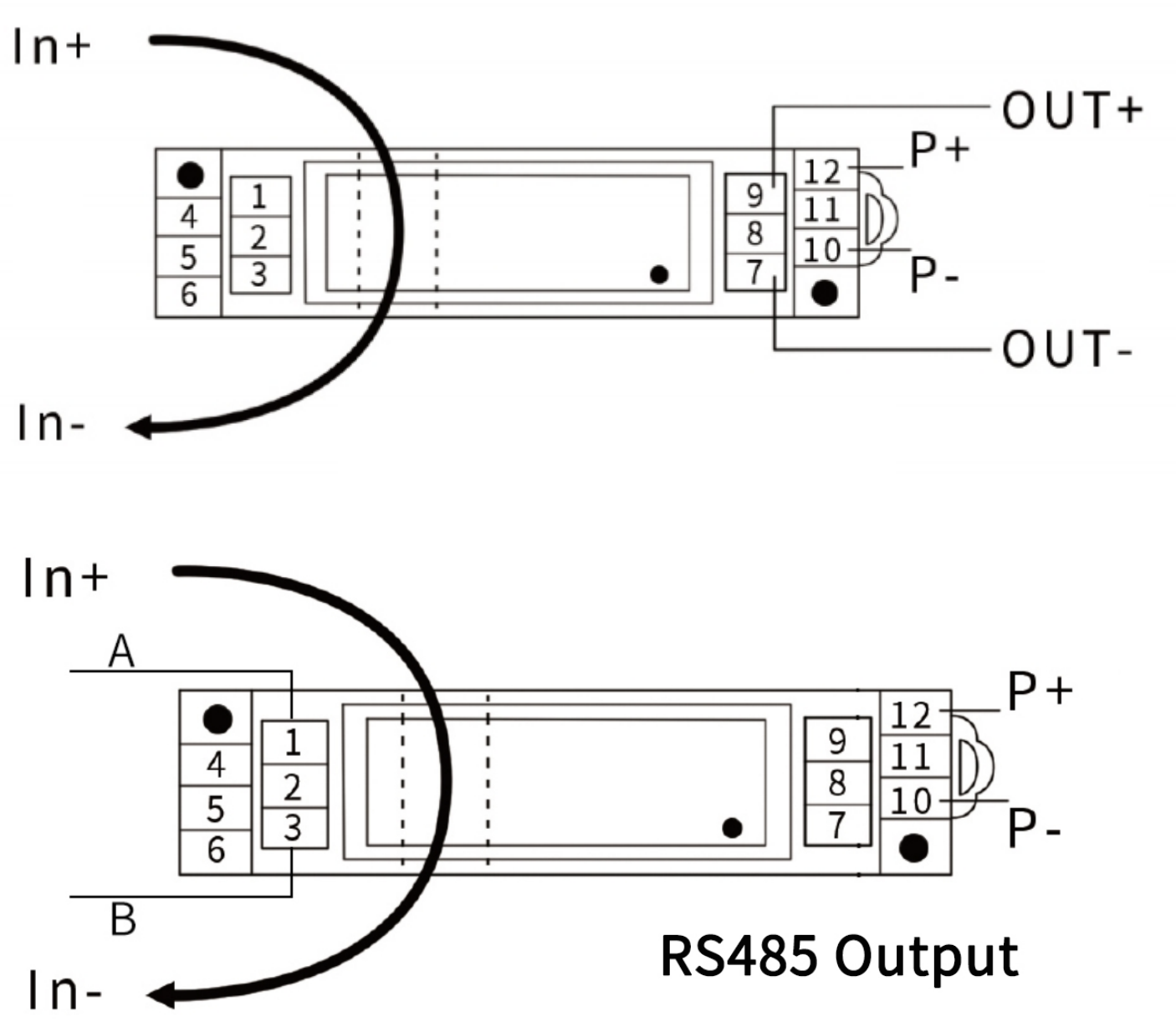

- Ratedoutput: 0-5V, 0-10V, DC4-20mA, DC0-20mA, RS485
- Loadcapacity: 5mA
- Linearity: 0.5%
- Accuracy: 0.5% 1%
- Isolated voltage: 2.5kV/50Hz, 1Min
- Temperature drift: <500PPM/°C
- Bandwidth: DC~20KHZ DI/DT
- Follow: >50A/uS
- Consumption current: 10mA+ output current
- Response time: <200ms
- Operating temperature: -10°C~+70°C
- Storage temperature: -25°C~+85°C
- Powersupply: DC24V/AC220V
Thecurrent transmitter is a device that converts the large current signal from the field into standard process signal and RS485 digital signal for measuring the sine wave AC current signal intheindustrial field. DINrail independent mounting.
